Comparative Study of Groundwater Recharge Mapping Using Analytical Hierarchy Process, Fuzzy-Analytical Hierarchy Process, and Frequency Ratio Models: A Case Study from Quetta Region, Pakistan

Ali, I.,^1,2*Khatibi, B. M. ¹ and Karimzadeh, S.¹

¹Department of Remote Sensing and GIS, University of Tabriz, Tabriz, Iran

²Department of Geological Engineering, Balochistan University of Information Technology, Engineering and Management Sciences (BUITEMS), Quetta, Pakistan

*Corresponding Author

Abstract

Groundwater is an essential resource in arid and semi-arid regions, where water scarcity and droughts are common. The Quetta region of Pakistan is one such area that requires effective groundwater recharge zone mapping to manage groundwater resources adequately. This study aimed to delineate groundwater recharge zones using analytical hierarchy process (AHP), fuzzy-AHP, and frequency ratio (FR) models. Additionally, it aimed to compare the effectiveness of these models in groundwater recharge potential zone mapping. To achieve the objectives, nine groundwater influencing factors were considered: geology, soil types, lineament density, elevation, slope, topographic wetness index, drainage density, land use land cover, and rainfall. Thematic maps for all these factors were generated using satellite and conventional data in the ArcGIS environment. All thematic layers were combined using AHP model-l (Weighed overlay), AHP model-ll (Weighted sum), fuzzy-AHP overlay, and FR-based model using ArcGIS. The findings revealed that 15% and 39% of the study area have high recharge potentials according to AHP-based model-l and model-ll, respectively. The FAHP model demarcated 43% of the area as high recharge zones, while the FR model demarcated 42% as high recharge zones. The majority of high groundwater recharge areas were found in the central part of the study area, while the southern part was demarcated as a moderate recharge zone. The eastern and western parts were demarcated as low recharge potential zones. To validate the accuracy of the models, the study used receiver operating characteristic (ROC) validation curves. The ROC curves revealed that AHP model-ll had the highest accuracy (AUC=89%), followed by the FAHP model (AUC=88%), AHP model-l (AUC=84%), and FR (AUC=81%). In conclusion, the AHP model-ll was more effective in recharge zone demarcation than the FAHP and FR models in the current study. The results of this study can benefit decision-makers in groundwater resource management and future planning in land use for urban extension, particularly in water-scarce regions of the country.

Keywords: Analytical Hierarchy Process, Frequency Ratio, Fuzzy-Analytical Hierarchy Process, Groundwater Recharges Zoning, Quetta Region

1. Introduction

Water is a very critical source of life indeed. Certainly, population evolution, aging infrastructure, climate change, and an upsurge in strict water quality standards are the main aspects that evidence it [1] and[2]. Despite its importance, water is a poorly managed natural resource on the earth's planet [3]. Groundwater (GW) is a type of water present in subsurface fractured lithological formations and soil pores [4]. In both developed and developing countries worldwide, GW has emerged as a vital and reliable source of water for both urban and rural areas [5]. GW is the foremost source of water for irrigation and agricultural activities worldwide. It is worth noting that more than 60% of agricultural practices are dependent on GW [6]. Pakistan ranks fourth in the world in terms of the amount of GW extracted for irrigation purposes. Only 27% of the entire agriculture area is irrigated by surface water supplies, while the remaining 73% depends on GW either directly or indirectly. Presently, around 1.2 million private tube wells abstracting GW in the country, having an annual abstraction rate of around 65 billion cubic meters [7].

Baluchistan province is situated in an arid to semi-arid climatic zone of Pakistan. In this area, the source of surface water is non-perennial, which means that GW is the only dependable source for municipal, industrial, and agricultural usage [8][9] and [10]. Agriculture is the key pillar of the economy of about 85% population of the province [11]. The province was hit by numerous severe droughts in history, which had a radical influence on livelihoods and its economy and destroyed around 80% of its fruit orchids [12]. Over 40% of the population of the province resides in the Pishin basin, with most living in and around the Quetta region (study area). Over the course of the last decade, the population of the Quetta region has experienced a significant increase from 1.02 million to 1.8 million individuals. The escalation of population density has been observed to correlate with a subsequent surge in the demand for agricultural and industrial water, ultimately leading to an exacerbation of water scarcity in the study area. This phenomenon highlights a significant challenge that needs to be addressed, as it poses a serious threat to the sustainable management of water resources [13].

Research reveals that if the watersheds are not managed in an integrated sustainable way, led to a diminution of natural resources i.e., water, vegetation, soil fertility, flora and fauna, etc. [14]. Understanding the scenario of GW resources is crucial for ensuring sustainable development in a region [1]. The GW recharge potential mapping and delineation is among the most important and prior stages in GW resources management and planning [15]. The utilization of geospatial technologies is essential for the successful exploration of groundwater and the effective management of watersheds. These innovative technologies enable the measurement, analysis, and visualization of geospatial data, thus facilitating the identification of water resources and the monitoring of hydrological processes. As such, geospatial technologies play a crucial role in the evaluation and management of water resources, aiding decision-makers in making informed and effective decisions that ensure sustainable water use. Geospatial technologies are more efficient and cost-effective alternative to traditional methods. They allow for quicker completion of tasks, while also reducing overall costs [4][16] and [17]. GIS coupled with multi criteria decision analysis(MCDA) covers a large area in a short period to map and identify GW recharge potential zones [18]. Several researchers around the globe [18][19][20][21][22][23][24][25][26][27][28][29][30] and [31] have applied GIS and RS based techniques for identification of GW recharge potential zones. They used GIS-based models like the Analytical hierarchy process (AHP), Fuzzy logic, Frequency ratio (FR), Multi-criteria decision analysis, Shannon's Entropy (SE), etc.

A truly little geospatial technology-based approach has been adopted at country level as well as in the study area. This study employs geospatial technology for delineation of GW recharge potential zones in the Quetta region of Pakistan. In current study we will utilize remote sensing (RS) and geographic information system (GIS) along with the analytical hierarchy process (AHP), fuzzy-AHP, and frequency ratio (FR) models for GW recharge mapping in a drought-porn region. Mapping GW recharge potential zones will assist decision-makers in GW resource management and future land use planning. In drought-prone regions where the GW table is relatively deep, ensuring a consistent supply of clean water has been a significant challenge. This study will also help in the installation of future dug/tube wells or boreholes in the study area which can minimize the cost and effort of hydrogeological investigation.

2. Materials and Methods

2.1 Study Area Description

Baluchistan is the largest province of Pakistan that spreads over an area of about 347,000 km². Geographically, it constitutes about 43% of the total area of the country. Hydrologically, Baluchistan is divided into 18 river basins, namely, Dasht, Gaj, Gawadar, Hab, Hamun-e-Lora, Hingol, Hmun-e-Mashkhel, Kachiplain, Kadnai, Kaha, Kand, Kundar, Mula, Nari, Pishin, Porali, Rakhshan, and Zhob. The Study area of Quetta region is a part of the Pishin River Basin, extends between Latitude from 29°45'00" to 30°30'00", Longitude from 66°45'00 to 67°20'00 (shown in Figure 1).

The topography of the study area is varied and includes elongated mountain ridges, depressions, and small plains. The height of the sub-basin gradually rises as you move towards the northeast of Quetta Valley. This is where the Zarghoon Range is located, forming the highest peak in the area at 3,519 meters above mean sea level (amsl). In Zargoon, the streams flow through gorges with extremely steep slopes. The Takatu Range of 3,401 amsl is exposed in the north, the Chiltan Range is 3,261 amsl exposed in the west and the Murder Ghar is 3,134 amsl exposed to the east of the study area. The central part is somehow flat and gently sloping toward the south along the drainage pattern. The average topographic elevation of the study area is 1,650 amsl.

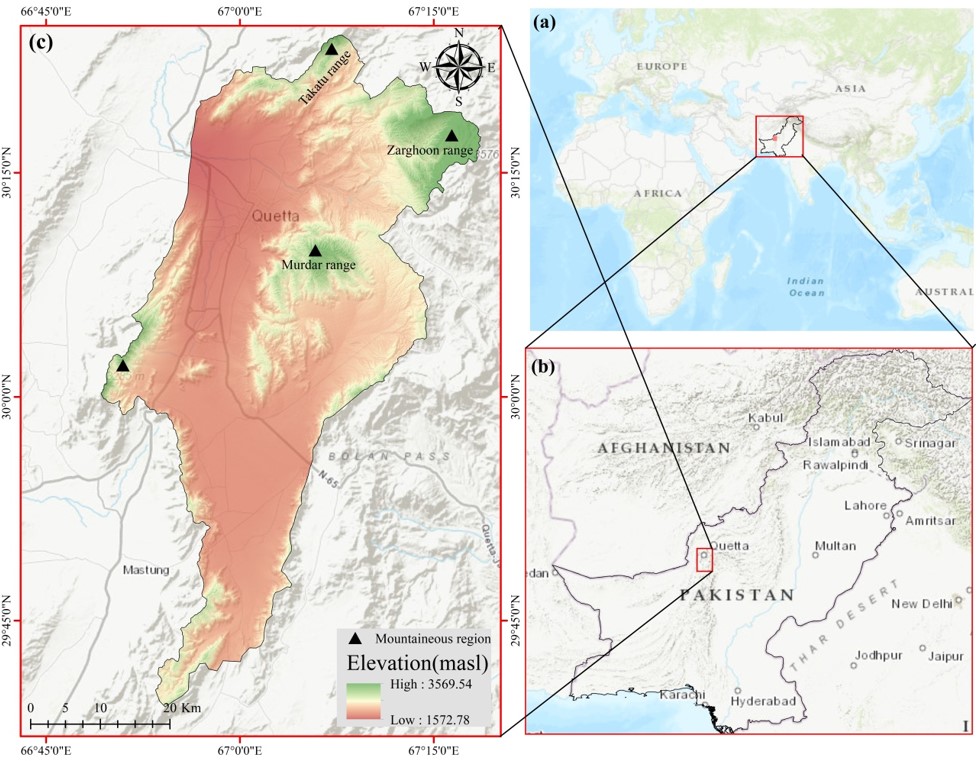

Figure 1: Location map of (a) World (b) Pakistan and (c) Quetta Region

2.2 Data Acquisition Sources and Preparation of Thematic Maps

The acquisition of data is the most critical step in research. The selection of influencing factors is a key stage in GW recharge studies [32] and [33]. In the current study influencing factors were considered based on its importance to the GW recharge and extensive literature review. Thematic maps were constructed from satellite and conventional data by using ArcMap 10.8. A Digital Elevation Model (DEM) with a 30m resolution was downloaded from the open topography website ( https://portal.opentopography.org/) and was further employed to generate thematic maps, such as slope, elevation, TWI, drainage density. Detail of each thematic layer is discussed in following sections.

2.2.1 Geology

Geology signifies the physical makeup of rocks including their mineral compositions, grain size arrangement, etc. [34]. The type of rock has a significant impact on how groundwater moves because it determines the flow mechanisms and infiltration [35] and [36]. In the current study geological map (1:250000 scale) was collected from a geological survey of Pakistan, and was rectified and digitized by using ArcGIS-10.8. Ultimately, the thematic map was transformed from vector to raster format prior to assigning weights and ranks (Figure 2(a)).

2.2.2 Lineament Density (LD)

Lineaments provided valuable details on the underground geology and physical characteristics like fractures, faults, and joints. Lineaments express local and regional tectonic behavior; and also act as reservoirs and channels for hydrocarbons and mineral deposits [37]. The lineament map of the study area was generated using the Landsat-8 (Thematic Mapper and Operational Land Imager) satellite image processed with PCI Geomatica Software in PCI Geomatica, the image was imported and improved using the "Enhancements" tool. Subsequently, the Lineament Extraction algorithm from the Algorithm Librarian under Tools was applied. The resulting map was then imported into ArcGIS, and the lineament density was calculated using the Spatial Analyst Tools > Density > Line Density option (Figure 2(b)).

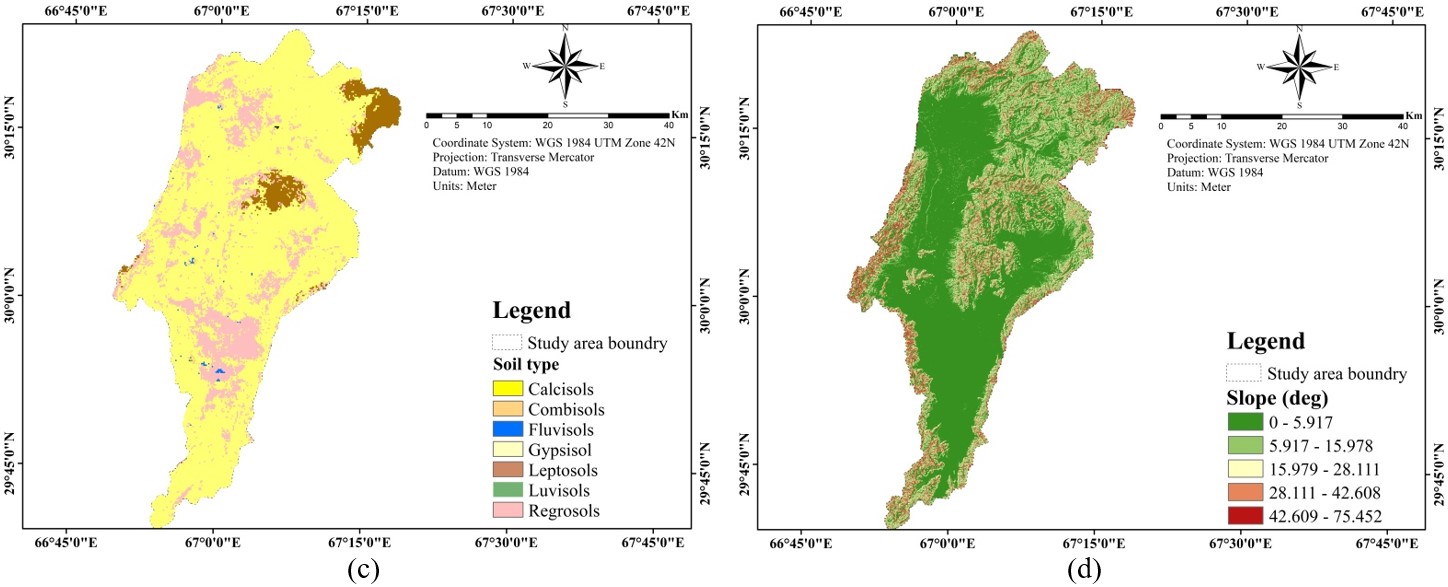

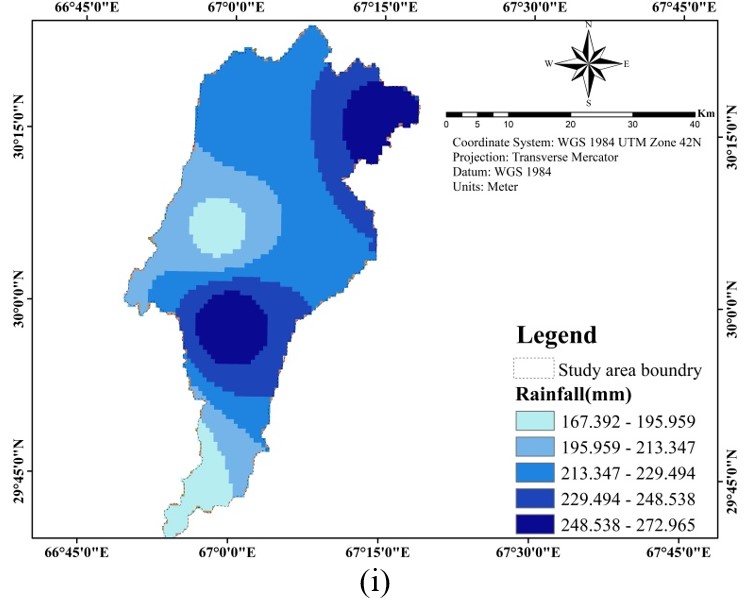

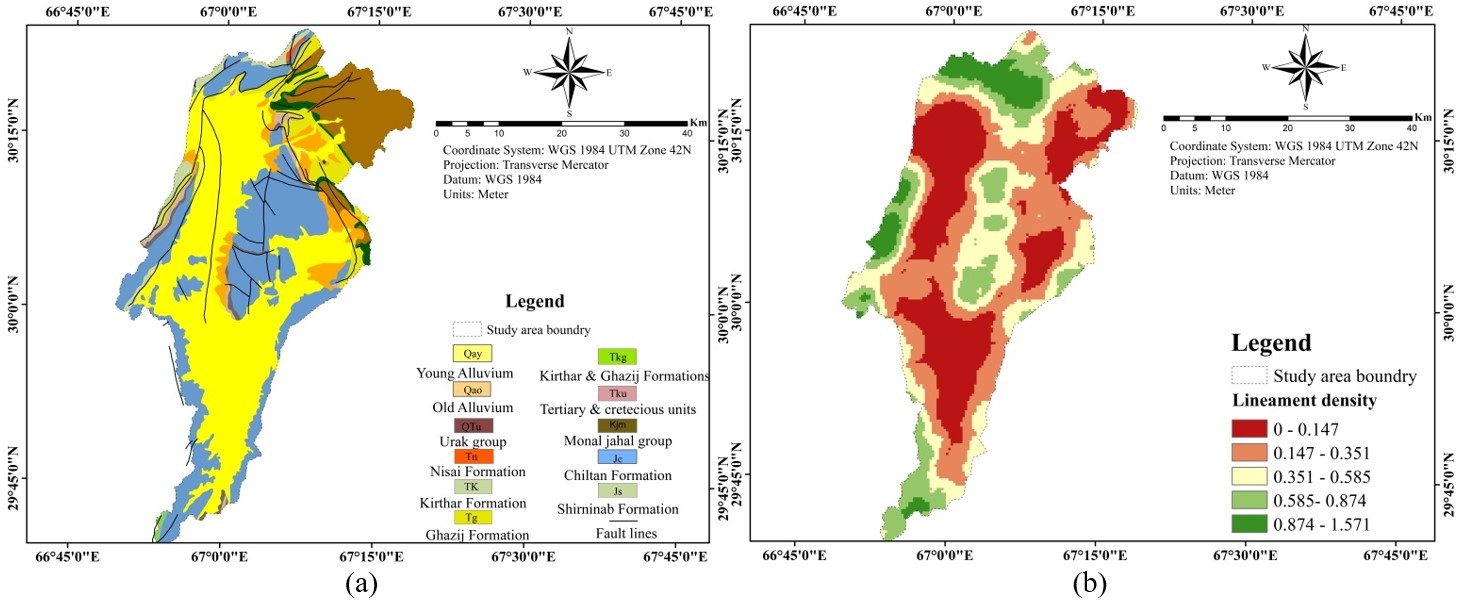

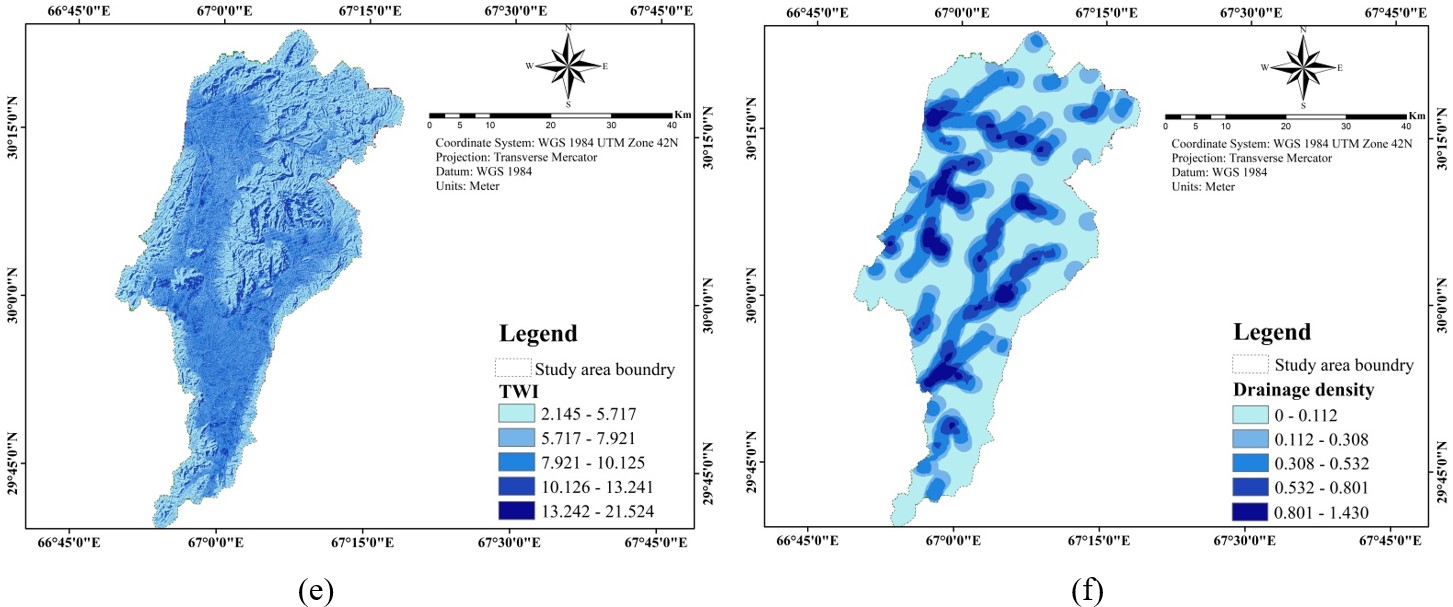

Figure 2: Thematic/factors maps
(a) Geology (b) Lineament density (c) Soil type (d) Slope (e) TWI
(f) Drainage density (g) Elevation (h) LULC (i) Rainfall

2.2.3 Soil types

The infiltration process is greatly influenced by the texture of the soil, which makes soil one of the main influencing factors in GW recharge studies [38]. The soil map was downloaded from International Soil Reference and Information Centre (ISRIC) website ( https://www.isric.org/). The study area comprised seven types of soil namely; calcisols, combisols, fluvisols, gypsisols, leptosols, luvisols, and regosols (Figure 2(c)).

2.2.4 Slope

The slope represents the angle between the tangent plane and the horizontal plane at any given point [39].The slope plays a crucial role in determining the flow formation process and infiltration rate [40]. Many of researchers reported an inverse relation between slope and infiltration rate [41][42] and [43]. Gentle slope areas have a high infiltration rate, so more suitable for GW recharge and vice versa [44].

The slope map of the study area was generated from DEM using the "Spatial Analysis Tools" in ArcGIS 10.8 (Figure 2(d)). The study area includes steep areas, with high slopes found in the northern and eastern sections due to the mountainous terrain, making slope a key factor in the current study.

2.2.5 Topographic Wetness Index (TWI)

TWI describes how topography affects hydrologic processes. It relates to GW flow movement and its retentions in subsurface zones [45]. TWI is computed as Equation 1:

Equation 1

Where , α denotes Specific contributing area and β denotes Topographic slope of the area.

The areas with higher topographic wetness index (TWI) values are more suitable for GW recharge, as they indicate higher GW potential zones [46] and [47]. This is in contrast to areas with lower TWI values [48]. To achieve this, in ArcMap, we first projected the digital elevation model (DEM) to WGS84/UTM Zone 42 N. Then, we followed a series of steps including filling the DEM, determining the flow direction and accumulation, calculating the slope in degrees, calculating the radiance of slope, and scaling the flow accumulation. Finally, we determined the TWI using the natural logarithm of the scaled flow accumulation divided by the tangent of the slope (Figure 2(e)).

2.2.6 Drainage Density (DD)

Drainage density represents spatial distribution of the streams length per unit area [49][50] and [51]. Drainage density is one of the key factors in assessing and distribution of GW potentials over an area [52][53] and [54]. It describe the occurrence and flow pattern of water under the surface [50] and [55]. The DD has an inverse relationship with the permeability[56]. DD and surface runoff have a direct relationship with each other. In regions with low DD, infiltration is greater compared to regions with high DD[57] and good sources of high GW recharge [58]. The DD value is computed from the following as Equation 2 [59]:

Equation 2

Where, S_i denotes the drainage length, i is the darinage order and Ais the unit area in km².

The Stream Network was generated using "Hydrology Tool" in ArcMap. The following steps were taken: Fill DEM => Flow Direction => Flow Accumulation => Stream Order => Stream to Feature => Line density (Figure 2(f)). The flow accumulation threshold dependent on area size. In current study flow accumulation was taken "flow accumulation > 5000" using map algebra.

2.2.7 Elevation

Altitude is a crucial factor in GW recharge as it triggers water flow under gravity [33] and [60]. Studies have indicated that the transfer of water from higher to lower altitudes is more pronounced in mountainous regions due to their elevated levels. Moreover, it has been established that flat surfaces are more effective in recharging water sources as compared to inclined surfaces and high-altitude regions [44]. The study area consists mostly of mountainous regions with steep altitudes, leading altitude to be a critical factor that impacts groundwater recharge in the study (Figure 2(g)).

2.2.8 Land Use Land Cover (LULC)

The Land Use and Land Cover (LULC) is a crucial factor in determining appropriate locations for GW recharge [61]. For the purposes of our current study, we utilized a LULC map that was conveniently available for download from the Living Atlas by Esri. The exact website that we obtained the map from can be found at https://livingatlas.arcgis.com/. The study area having six classes; waterbody, trees, cropland, builtup, barenland and rangeland (Figure 2(h)).

2.2.9 Rainfall

The characteristics of rainfall affect infiltration, runoff, and GW recharge [62] and [63]. The study has obtained rainfall data from the department of irrigation, Balochistan. The data covers the last 30 years (1980 to 2010), and the average rainfall data from multi-rain gauge stations were interpolated using the "Spatial Analyst Tools" > Interpolation > IDW. This process produced a rainfall contour map that was used to extract the rainfall map for the study area by applying the "Spatial Analyst Tool" > Extraction > Extract by Mask (Figure 2(i)).

2.3 Methodological Overview

The current study utilizes a multi-parameter dataset consisting of geology, lineament density, drainage density, soil type, slope, elevation, TWI, average rainfall, and LULC to identify GW recharge potential zones. The study employs three models -AHP, FAHP, and FR - to delineate these zones, providing a comprehensive understanding of the factors that contribute to GW recharge potential in the area. The methodological framework for this study is outlined in Figure 3. The mapping of the GW recharge zone is divided into four stages, as given below:

/

Stage 1: Data acquisition and database generation: In the initial stage, a thorough evaluation was conducted to identify nine key factors that impact GW recharge zones. Based on this evaluation, a comprehensive geospatial database was created, which forms the foundation for further analysis.

Stage 2: Preprocessing and the generation of thematic maps : The second stage included preprocessing of all acquired data and generating thematic maps from satellite and conventional data using the ArcGIS environment.

Stage 3: Weight assignment and reclassification of thematic layers: In the third stage of analysis, three models were employed to assign weights to different thematic maps based on their importance to GW recharge. These maps were then divided into three distinct classes, which corresponded to high, moderate, and low recharge zones. To produce final maps of GW recharge potential, various techniques such as AHP-Weighted overlay, AHP-Weighted sum, fuzzy-AHP overlay, and FR-based models were used in ArcGIS. By merging all the layers, the final maps were created.

Stage 4: Results validation: In the fourth and final stage, the results were validated to ensure their accuracy. This was done through the use of receiver operating characteristics (ROC) curves for each of the models. An area under the receiver operating characteristic (AUC) curve was generated to visually represent the correlation between the accumulated percentage of water wells and the delineation of different groundwater potential recharge zones. Additionally, the electrical conductivity (EC) of wells was also used for cross-validation. The final results have been verified using these methods.

Figure 3: Methodological flowchart of the current study

3. Results and Discussions

3.1 AHP Model-Based Weight Assignment

Thomas Saaty developed the Analytic Hierarchy Process (AHP) at the Wharton School of Business in 1980. It offers decision-makers a method to analyze and address intricate issues within a hierarchical framework. It clearly displays the relationships among goals, objectives, sub-objectives, and alternatives [30]. The AHP method was used in ArcGIS to determine the Normalized Principal Eigenvector (NPEV) or Percent Weight in the weighted overlay Analysis. The process involves entering contributing criteria based on their importance in mapping GW recharge zones. Factors are given scores between 1-9,indicating their relative importance in pairwise comparisons [64]. A pairwise comparison matrix (PCM) was constructed based on saaty scale and expert opinion (shown in Table 1).

Where, GE represents geology, ST represents soil type, SL represents slope, LULC represents land use/land cover, LD denotes lineament density, EL denotes elevation, DD denotes drainage density, TWI represents topographic wetness index and RF represents rainfall. Once the Pairwise comparison matrix was created, normalized weights (Wn) were computed (Table 2) in the following manner Equation 3 [65]:

Equation 3

Where, GM_n designates the geometric mean of n^th rows elements.

Finally Normalized weights (w_n) were verified using consistency ratio matrix [64]. A Consistency Ratio (CR) is the ratio of the Consistency Index (CI) to the Random Consistency Index. (RI). The value of CI for GW potential and recharge zone parameters investigated in this study was calculated as Equation 4.

Equation 4

Where, n represents the quantity of criteria and λ_maxstands for the Principal Eigenvalue value (Ratio of weight sum to the criteria weight) obtained from consistency ratio matrix (Table 4). The Random index (RI) was derived from Table 3 of [64], which depends on number of criteria (n) adopted in the study. The CR value is utilized to evaluate the consistency of the matrix. The CR value must be determined less than 0.1 [64] and [66]. If the value of CR is less than or equal to 0.1(10%), the inconsistency is acceptable.

Table 1: Analytic hierarchy process pairwise compression matrix (PCM)

Table 2: Normalized relative weight (Wn), and Normalized Principal Eigen Vector (NPEV)

Table 3: Random Index (RI) value related to the number of criteria (n) [64]

Table 4: Consistency ratio matrix

Table 5: Thematic layer rank and weight in terms of GW recharge perspective

However, if the CR value is higher than 0.1(10%), then the comparison judgment must be re-evaluated. In the present study the λmax value obtained is 9.274 (from Table 4) and RI is 1.45 (from Table 3). The value of CR=0.023 < 0.10, which suggest that the inconsistency is acceptable for these 9 parameters under consideration in current study.

Before applying weighted overlay analysis, the ranks were assigned to each factor of all thematic layers, and the weight was assigned according to their relative importance to GW recharge potential (Table 5) using the Analytic Hierarchical Process (AHP) technique [67]. After assigning weights to all thematic layers, ranks/scale values from 1 to 3 were given for the sub variable of every thematic layer, in line with their importance for GW recharge potential occurrence. According to this study, 1 represents less vital (low recharge zones), and 3 represents more vital (high recharge) for GW recharge potential zoning. Final weighted overlay was calculated (shown in Figure 5(a)). In weighted sum, all classified thematic were multiplied with their corresponding weights and sum in the "weighted sum" tool in overlay analysis (shown in Figure 5(b)).

3.2 FAHP Model-Based Weight Assignment

The Fuzzy-Analytic Hierarchy Process (FAHP) is a decision-making model that combines the AHP method with fuzzy logic theory. This hybrid model is designed to handle uncertainty and vagueness in the decision-making process. In simpler terms, fuzzy logic theory is used to apply the theory of fuzzy sets in decision-making [68]. The fuzzy set theory is a mathematical framework for dealing with uncertainty and vagueness in data by allowing partial membership in a set [69]. Fuzzy set values range from 0 to 1, indicating gradual class transition [70]. Fuzzy-AHP was used to upgrade the AHP analysis by introducing fuzzy weight. The analysis involved two stages. The first stage included calculating the weights of the thematic layers. This was achieved by constructing pairwise-comparison matrices for each the criterion in the decision process and then upgrading them using triangular fuzzy numbers (TFNs). The TFNs are represented by l (lowest possible value), m (most likely possible value), andu(highest possible value) (shown in Tables 6 and 7). In the second step the geometric mean and the fuzzy weights for the thematic layers were calculated by employing Buckley’s geometric mean Equations (5 and 6) [71]:

Equation 5

Equation 6

Where R_i denotes the geometric mean values of criterion i to each criterion and a_in is fuzzy comparisons value of criterion i to criterion n; Wi denotes the fuzzy weight of the i^th criterion [70].

The Fuzzy weights were later standardized in order to determine the weight of each criteria utilizing Equation 7 [72]:

Equation 7

Where Mi = (lwi+mwi+uwi)/3, N_i = 1, i = 1,2….n and lwi , mwi , uwi represents the lower, middle, and upper values of the fuzzy weights of the i^th criterion, respectively.

In the second phase of the analysis, fuzzy membership values were allocated to each thematic layer. The ArcGIS platform was utilized to assign the fuzzy membership values by employing the linear transformation function. The fuzzy linear transformation is a frequently utilized technique in research related to GW recharge [73]. After the linear transformation of classified maps, normalized fuzzy weights were multiplied with each thematic map using a raster calculator in the spatial analyst tool. Finally, fuzzy overlay was employed to get the final GW recharge zones map. The Final map was reclassified into three GW recharge potential zones viz. high, moderate, and low recharge zones (shown in Figure 5(c)).

Table 6: Fuzzy pairwise comparison matrices (FPCM)

Table 7: Fuzzy-geometric mean (R_i), fuzzy-weight (W_i), and normalized weight (N_i) of each criterion

Table 8: Frequency ratio values for each thematic layer and its classes

3.3 FR Model-Based Weight Assignment

The FR model is a statistical model that can be used to assess the relationship between independent and dependent variables in geospatial analysis. This model is bi-variate and provides a convenient way to define the probability of this relationship. Additionally, the FR model can be applied to multi-classified maps, making it a versatile tool for geospatial analysis [74]. Many researchers have successfully applied FR models for GW recharge mapping [65][75][76][77] and [78]. The structural composition of the FR model relies heavily on the correlations and observed relationships between each groundwater conditioning factor and the distribution of well locations. The FR value attributed to each class of groundwater-related factors can be effectively expressed via the utilization of Equation 8:

Equation 8

Where W denotes the count of pixels with GW wells and G represent the total number of GW wells within the study area. M represents the number of pixels within the class area of the factor, while T represents the total count of pixels within the study area. In a given pixel, GW recharge potential can be determined according to the Equation 9 [79]:

Equation 9

Where GRPZ represents the GW recharge potentials zones and FRi is the FR value of each factor. In comparison to AHP and FAHP, in FR technique, the weight to each class is not assigned on the bases of properties of the influencing factors but given on the bases of spatial occurrence of the wells in each class. Similarly, the FR is calculated for all the conditioning factors (Table 8). Finally, the GW recharge zones map has been created by using raster calculator in ArcGIS environment (shown in Figure 5(d))

3.4 Thematic Layers Reclassification According to GW Rechargeability

3.4.1 Geology and reclassified geology layer

Lithology refers to the physical characteristics of rocks, including mineral composition and grain size [34]. Lithology controls the infiltration and flow processes of GW [35] and [36]. The study area is mostly covered by young alluvium (Qay), which makes up 46% of the area, followed by Chiltan formation (Jc) at 29.8%, Urak formation (QTu) at 8%, old alluvium (Qao) at 5.2%, Ghazij formation (Tg) at 4.5%, Shirinab formation (Js) at 2.4%, kirthar formation (Tk) at 1.4%, Tertiary and cretaceous (Tku) at 1.3%, Monal jahal formation (Kjm) at 1% and Nasai formation (Tn) at 0.2%. The major lithologies exposed in wide areas are limestone, conglomerates, and sandstone. Geology was reclassified into three recharge potential classes based on permeability and porosity: low (Tg/KJm/TKu/Tk/Tkg/Tn/Js), moderate (QTu/Jc), and high (Qay/Qao) (Figure 4(a)).

3.4.2 Lineament density and reclassified lineament density layer

Lineaments are critical geological features that act as reservoirs and conduits for minerals and hydrocarbons and reveal local and regional tectonic behavior [37]. The Chaman Fault's tectonic movements have caused the formation of various folding, faulting, fractures and joint systems in the limestone formations of the area. These fractured zones and joint systems show promise for the occurrence and movement of GW. The lineaments may lead to the development of secondary porosity and permeability in rocks [34] and [39]. Therefore, high lineament density areas are likely to have significant potentials for GW recharge. First Lineaments density map was classified using natural breaks (Jenks) into three classes and then reclassified lineaments according to GW recharge zoning i.e. Low (0-0.308), moderate (0.308-0.696), and high (0.696 - 1.571) (Figure 4(b)).

3.4.3 Soil types and reclassified soil types layer

The area under study consists of seven distinct soil types: Calcisols, cambisols, fluvisols, gypsisols, leptosols, luvisols, and regosols. Calcisols are the most prevalent soil type, covering 1347.64km² of the study area. Regosols cover nearly 300km², while leptosols cover 88.36 km², cambisols cover 5.5 km², fluvisols cover 3 km², gypsisols cover 0.65km², and luvisols cover an area of 0.1 km². ( https://soilgrids.org/). The classification of the soils was revised based on their grain size and the proportion of sand, clay, and silt in them. (https://www.isric.org/). Coarse-grained soils are known for their ability to infiltrate water at a high rate and are given high recharge potential values [80] and [81]. The reclassified soil type map shows leptosols, fluvisol, and calcisol characterize the high recharge areas because they are coarse-grained and have high sand contents [82]. Moderate value is assigned to cambisols and luvisols due to their ability to hold water well and good internal drainage [83]. Regosols and gypsisol have mostly high clay and fine texture [83], therefore assigned low recharge potentiality (Figure 4(c)).

3.4.4 Slope and reclassified slope layer

Slope has an inverse relation between infiltration rates [41][42] and [43]. The areas with gentle slopes have high infiltration rate, so more suitable to GW recharge and vice versa [40] and [44]. In the mountainous region high slope is the main impediment in GW recharge whereas low slopes are favorable for GW recharge. Accordingly slope map was reclassified using natural breaks (Jenks) into three classes and then reclassified according to GW rechargeability; Low (2.145- 6.384), moderate (6.384 - 9.715), and high (9.715 - 21.523) GW recharge zones (Figure 4(d)).

3.4.5 TWI and reclassified TWI layer

TWI describes the impact of topography on hydrologic processes. It relates GW flow movement and its retentions in subsurface zones [45].There is a positive correlation between TWI and GW recharge.

potential zones so areas with higher TWI are more suitable for GW recharge as compared to area with low TWI values 46][47] and [48]. TWI map was classified using natural breaks (Jenks) into three classes then reclassified according to GW rechargeability; Low (2.145 - 6.384), moderate (6.384 - 9.715), and high (9.715 - 21.523) GW recharge zone (Figure 4(e)).

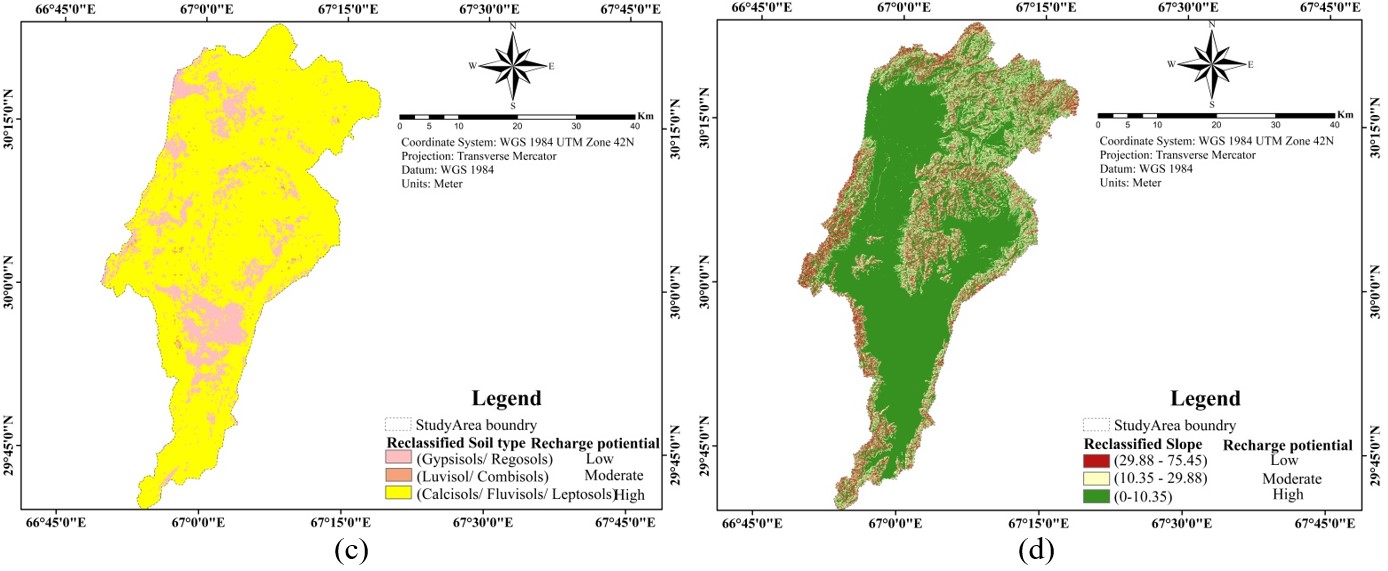

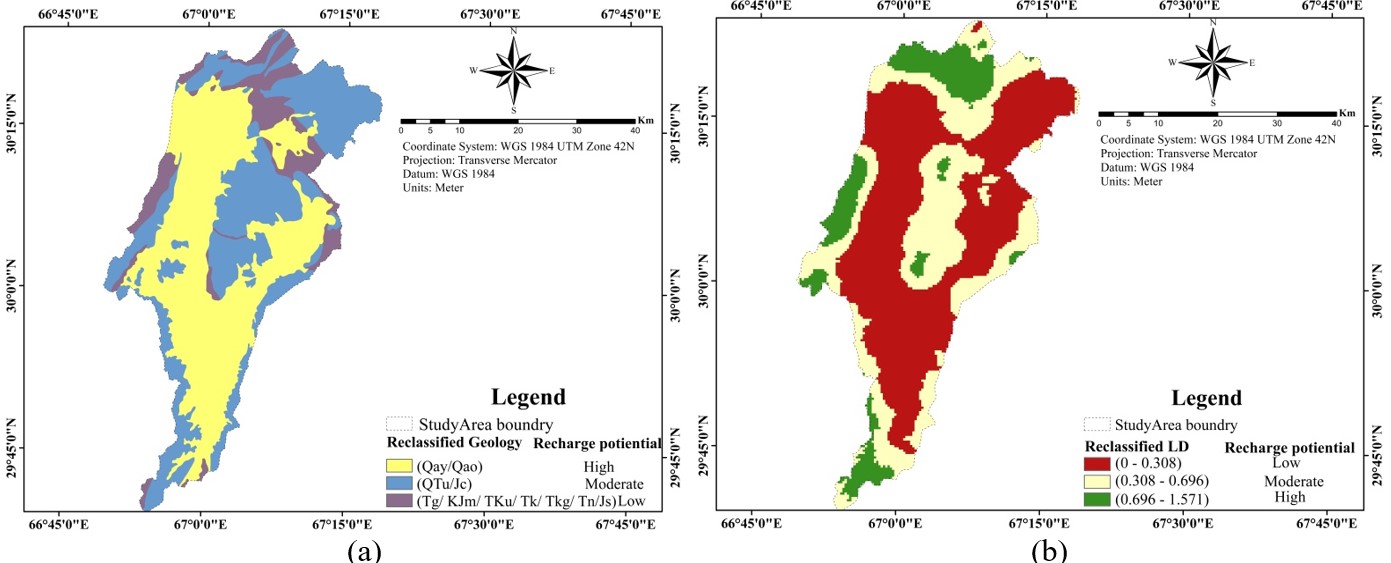

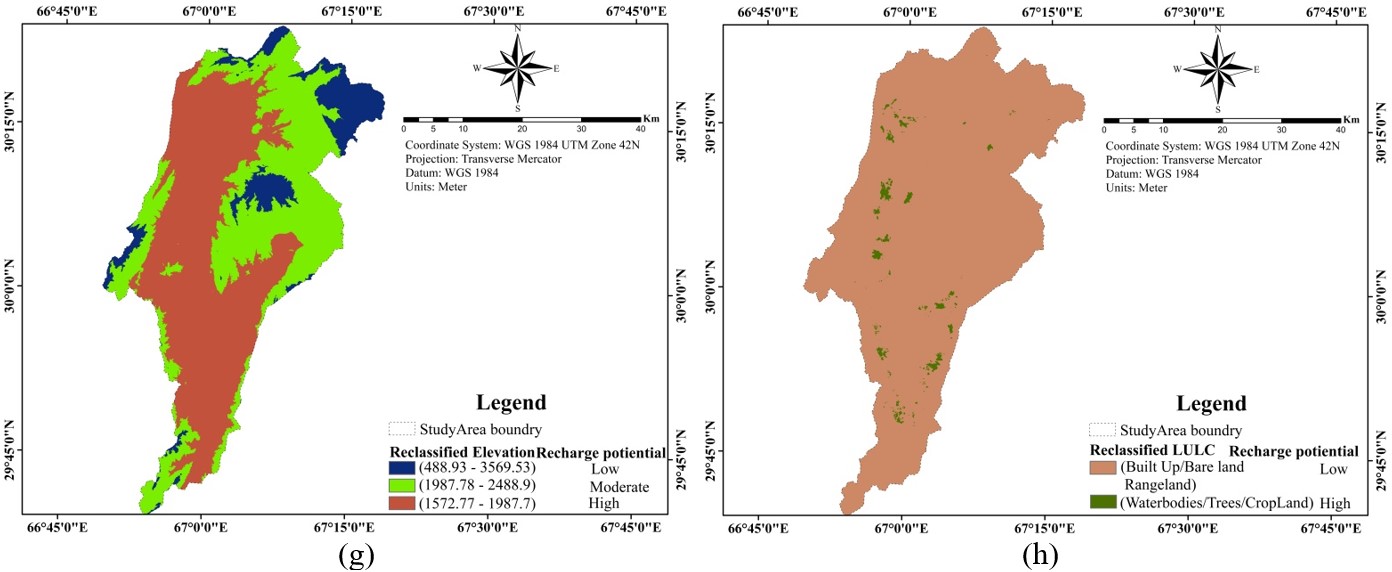

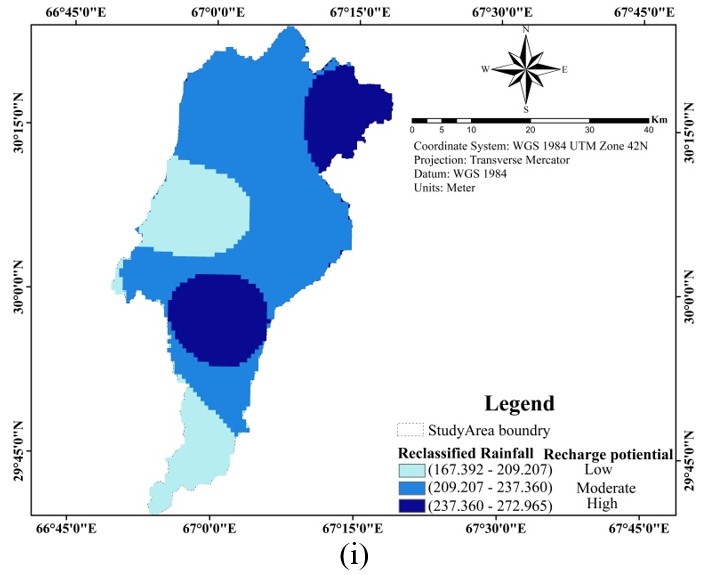

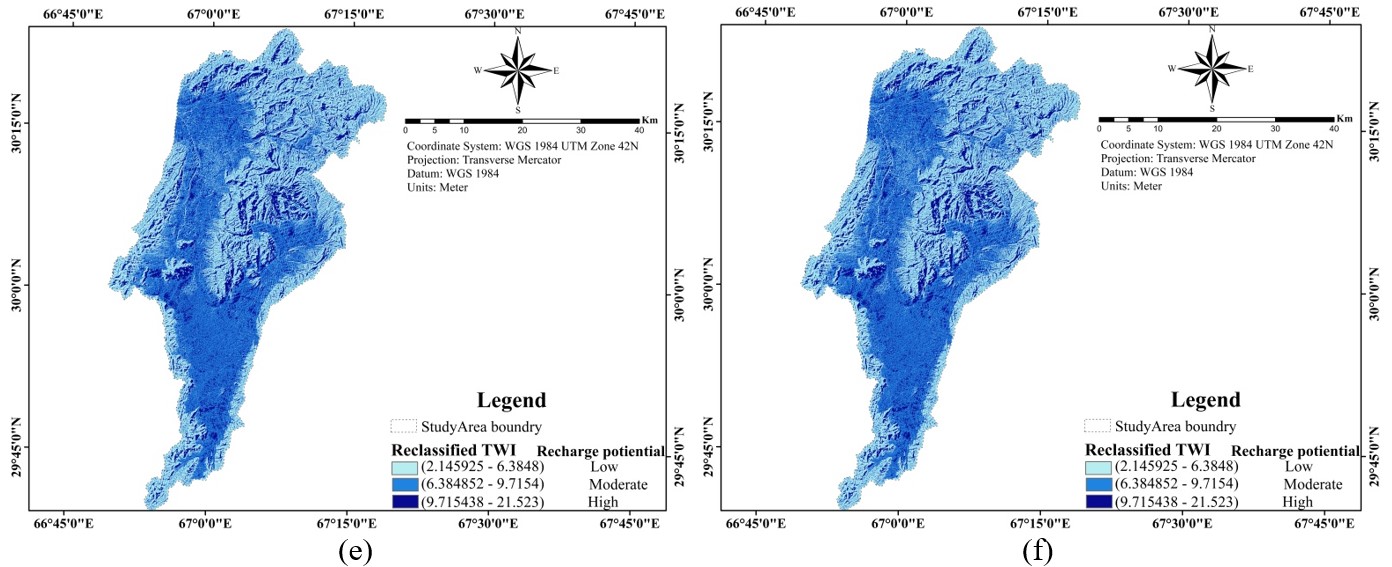

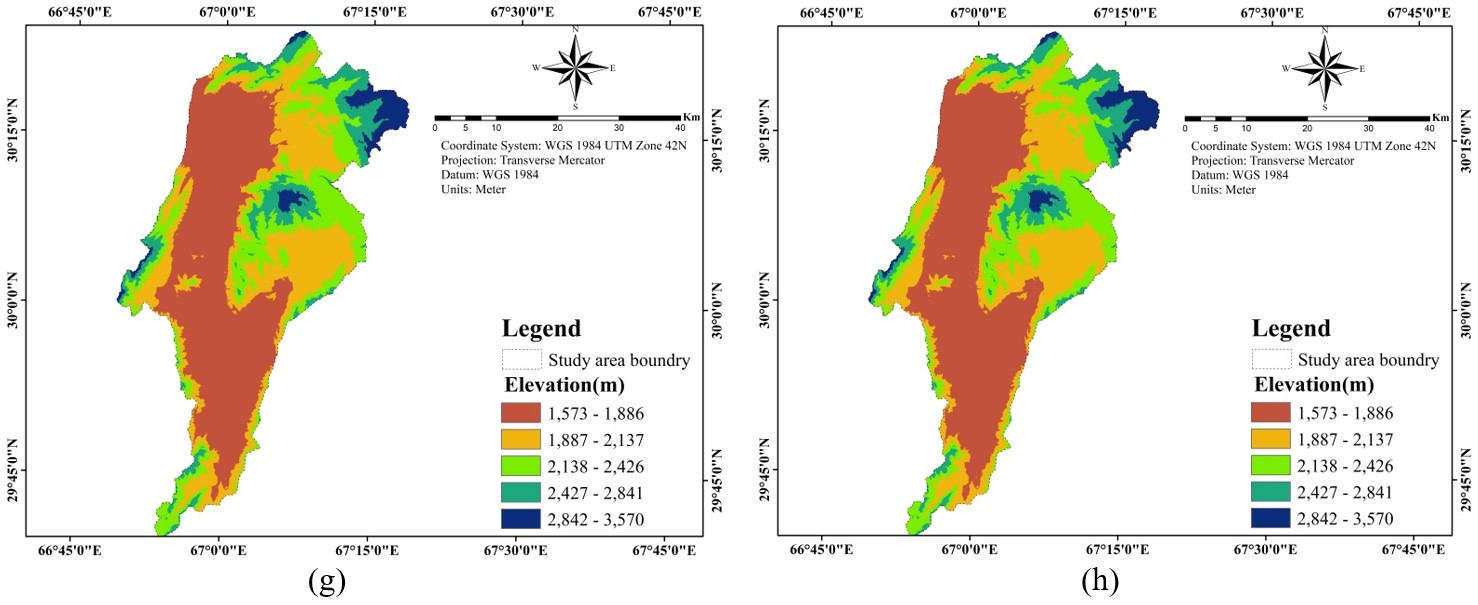

Figure 4: Reclassified layers
(a) Geology (b) Lineament density (c) Soil type (d) Slope (e) TWI (f) Drainage density (g) Elevation (h) LULC and (i) Rainfall

3.4.6 Drainage density & reclassified drainage density layer

The Drainage density is a crucial factor in the assessment and distribution of GW potentials in an area [52][53] and [54]. In terms of GW recharge, low drainage density implies more infiltration [57] and good sources of high GW recharge potentials [58]. Accordingly, Low drainage density areas were given more importance than high drainage density areas, as illustrated in Figure 4(f). The drainage density map has been classified using natural breaks (Jenks) into three classes, then reclassified according to GW rechargeability; as low (0.560 - 1.429), moderate (0.196 - 0.560) and high (0 - 0.196), recharge zones.

3.4.7 Elevation and reclassified elevation layer

The study area comprised of mountainous regions having high elevations. Based on GW rechargeability, elevation has been classified using natural breaks (Jenks) into three classes, then reclassified according to GW rechargeability; Low (488.93 - 3569.53), moderate (1987.789 - 2488.9), and high (1572.776 - 1987.7). The recharge potential of flat surfaces is greater than that of inclined surfaces and higher elevations, resulting in a higher rank being assigned to lower elevations [44] (Figure 4(g)).

3.4.8 LULC and reclassified LULC layer

The LULC is an important indicator that helps in identifying suitable locations for GW (GW) recharge [61]. LULC comprised of areal distribution of vegetation cover, cropland and residential or built up. The study area has six classes; waterbody, trees, cropland, builtup, barenland and rangeland (Figure 2(h). According to GW recharge perspective the LULC has been classified into two classes [50] and [84] (Figure 4(h)). The vegetation cover, waterbody and cropland assigned high weight as it has high GW inflation [85], while builtup, barenland and rangeland assigned low weight because of having high run-off and low infiltration rate [86].

3.4.9 Rainfall and reclassified rainfall layer

The study area falls in semiarid-arid region receiving average rainfall of 180-250mm/annul. The province is affected by two different meteorological systems (Western disturbances and Monsoon). In extreme cases oceanic currents and monsoon currents originating from the Arabian Sea can also reach southern part of the watershed and cause significant rainfall. In the north Western disturbances are the major cause of rainfall. Western disturbances are predominant in northern areas and high rainfalls occur. Monsoon is predominant more in southern parts. The generated rainfall map has been reclassified using natural breaks (Jenks) into three classes then reclassified according to GW rechargeability; low (167.392 - 209.207), moderate (209.207 - 237.360) and high (237.360 - 272.965), recharge potential zones (Figure 4(i)).

3.5 Final GW Recharge Potential Zones Mapping in ArcGIS Environment

Prior to the overlay analysis, all thematic layers underwent projection using WGS84/UTM Zone 42 N datum coordinate system. This was carried out to ensure a uniform resolution of 29*29m for optimal utilization within the ArcGIS environment. The GW recharge maps were created by overlaying all reclassified thematic layers (Geology, Soil type, Slope, LULC, Elevation, Lineament density, Drainage density, TWI, Rainfall) in the ArcGIS environment, as illustrated in Figure 4(a)-4(i). To determine the final weight for each thematic layer, we used the analytical hierarchy process (AHP), integrated Fuzzy analytical hierarchy process (FAHP), and Frequency ratio models, which are outlined in Tables 5 to 8. The resulting maps were then divided into three descriptive zones based on the recharge zone, namely "Low," "Moderate," and "High," each represented by distinct colors, as shown in Figures 5(a)-5(d).

Table 9 displays the statistical and spatial distribution of each model (Figure 5(a)-5(d)). The results of the AHP model-l show that 1449 km² (84%) of the study area falls under the moderate GW recharge zone, 254 km² (15%) falls under the high recharge zone, and 19 km² (1%) falls under the low recharge zone. On the other hand, the AHP model-ll indicates that 321 km² (19%) of the area falls under the low recharge zone, 721 km² (42%) falls under the moderate zone, and 680 km² (39%) falls under the high recharge zone. Similarly, the FAHP model reveals that 269 km² (16%) of the region falls under the low zone, 718 km² (42%) falls under the moderate zone, and 736 km² (43%) falls under the high recharge zone. Finally, the FR model statistics show that 391 km² (23%) of the area falls under the low zone, 610 km² (35%) falls under the moderate zone, and 721 km² (42%) of the study area falls under the high recharge zone.

4. Results Validation with AUC and Well Data

The Receiver operating characteristic curve (ROC) and area under the curve (AUC) are used to predict classification accuracy [31] and [87]. Many of the researchers [31][65][69][72] and [88] have used ROC for validation of their research. In the current study, resultant maps of GW recharge potential zone, developed by GIS-based models (AHP, FAHP, FR) have been validated through the ROC curve. The AUC was plotted between the accumulated percentage of water wells and different GW recharge potential zones. AHP model-l (weighted overlay), AHP model-ll (weighted sum), FAHP, and FR models showed 84%, 89%, 88%, and 81% prediction accuracy respectively (Figure 6). Since all these results fall in (0.8-0.9) very good class [89], hence applications of all models (AHP, FAHP, FR) showed very good accuracy in spatial prediction of GW recharge zone mapping, but AHP model-ll showed more effectiveness than FAHP and FR in the current study.

Table 9: Spatial/Areal distribution of GW recharge zone

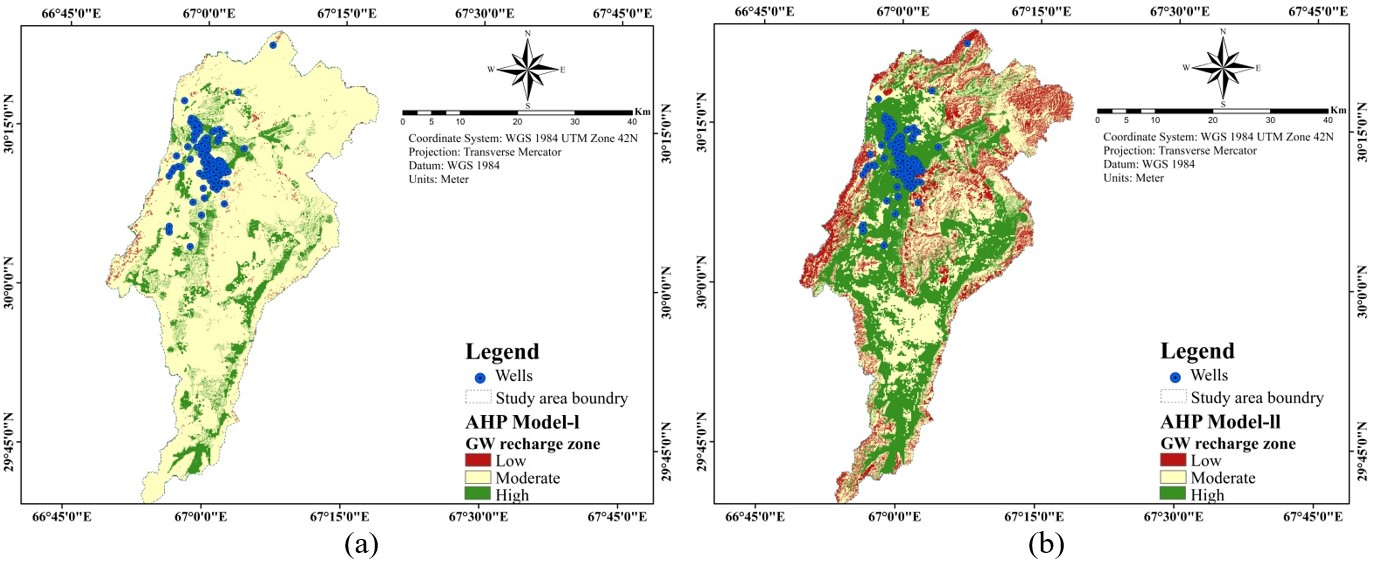

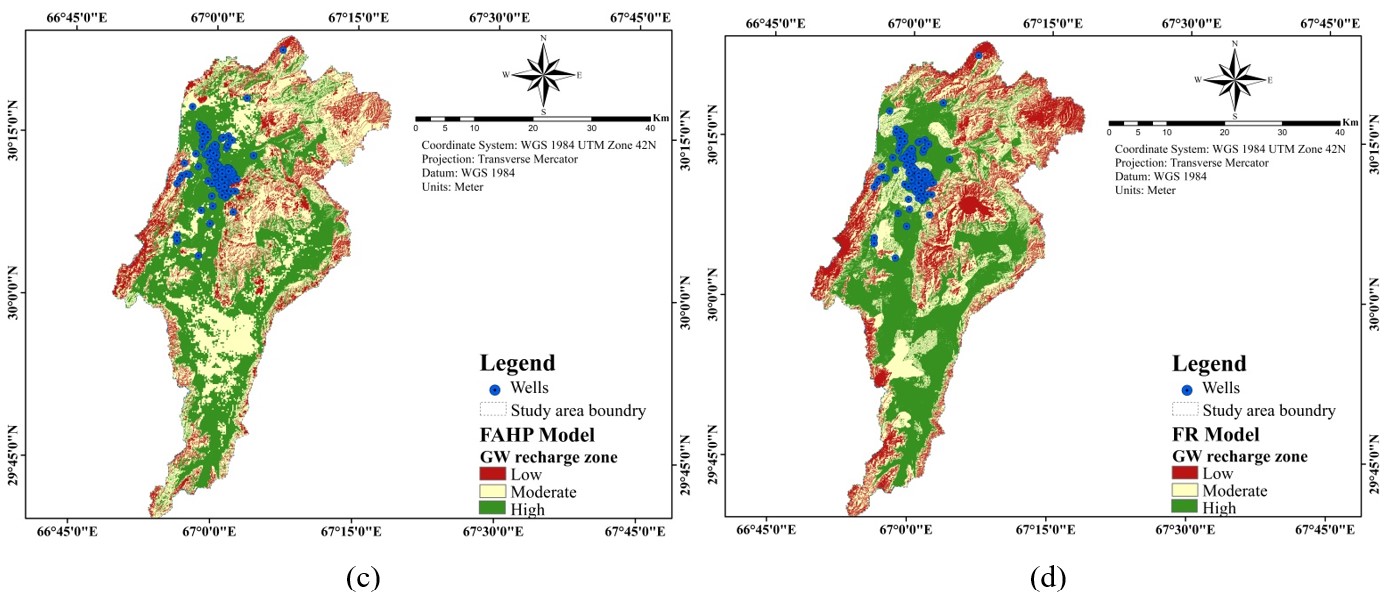

Figure 5: GW recharge zone maps using
(a) AHP Model-l(WLC) (b) AHP Model-ll(Wsum) (c) FAHP Model and (d) FR Model

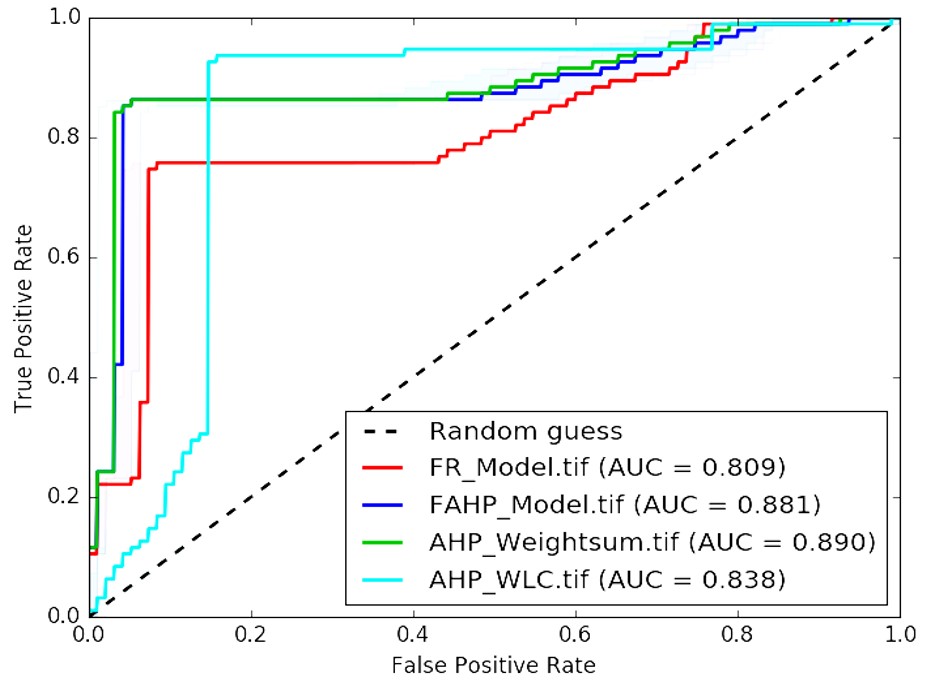

Figure 6 :Receiver operating characteristics (ROC) curves for AHP, FAHP and FR models

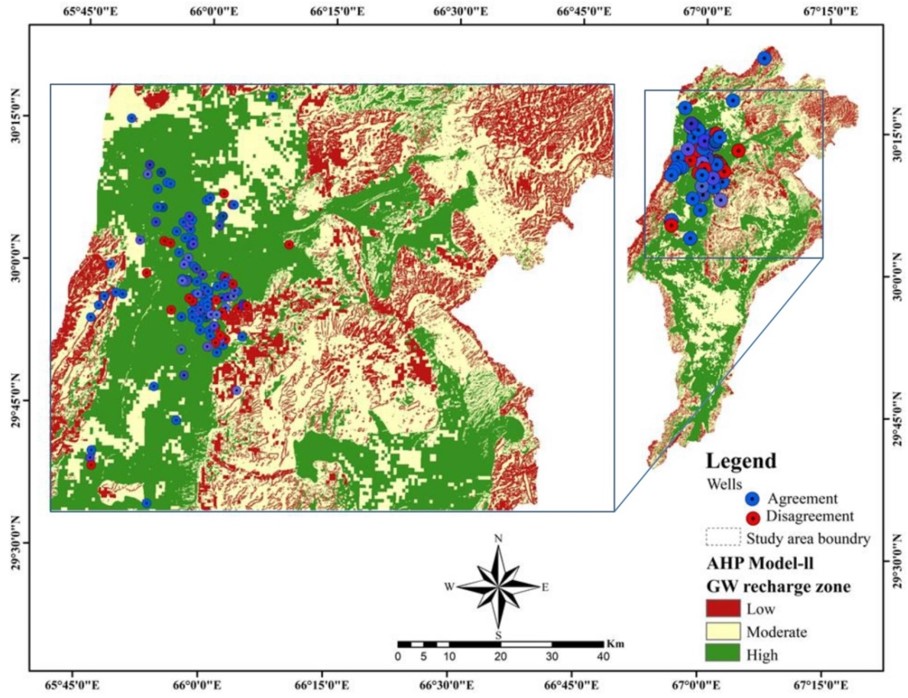

Figure 7: Showing validation (agreement/Disagreement) of wells on bases of EC

For cross-validation electrical Conductivity (EC) of well distributed over study was used to verify the GW recharge areas. Many researchers [69][72][90] and [91] used EC to verify demarcated GW recharge zones. The concentration of salt in GW is measured by EC, which reflects the level of ionic concentration in GW [69]. Based on EC readings, GW can be classified into three types. Type-1 GW has EC less than 1500 μS/cm and is fresh-water with a low concentration of salts. Type-2 GW has EC between 1500-3000 μS/cm, indicating a moderate concentration of salts. Type-3 GW has EC greater than 3000 μS/cm, indicating high salinity [92] and [93]. In the current analysis 141 wells data, acquired from the Pakistan Council of Research in Water Resources (PCRWR) report, were used.EC range 300-1401 in study area. Based on EC, wells were divided into two types viz, type-1(EC<=1000) considered as High-moderate GW recharge, and type-ll (EC>1000) were considered as low GW recharge zones.

Based on the outcomes of the Analytic Hierarchy Process (AHP) model-ll, which exhibited a higher accuracy of prediction at 89%, this model was employed for cross-validation, as outlined in Annexure-l-Table 9. The well locations studied were divided into three categories based on their GW (GW) recharge zones: high, moderate, and low. Of the 141 wells surveyed, 119 wells (84%) were located in high GW recharge zones, while 17 wells were in moderate zones and 5 wells were in low recharge zones (graphically presented in Figure 7). it indicates that 98 of the 119 wells (82%) located in high GW recharge zones are in agreement, as well as 13 of the 17 wells (76%) in moderate zones, which fall into type-1 wells. Among the 5 wells classified as type-ll, 3 (60% agreement) are included in this category. Overall, our study demonstrates a high level of agreement (81%) between electrical conductivity and GW recharge.

5. Conclusion

The study showcases the use of geospatial technology to identify GW recharge potentials in the Quetta region of Pakistan, which is a semiarid-arid area. The study employed AHP, Fuzzy-AHP, and FR models to assign weights to influencing factors and then reclassified selected thematic maps into three classes based on GW recharge zones. Each class was assigned weights based on its significance to GW recharge, and all layers were combined using an AHP-Weighted linear combination, AHP-Weighted sum, fuzzy-AHP overlay, and FR-based models through ArcGIS. The final map resulted in three distinct GW recharge potential zones viz; high, moderate, and low GW recharge zone. The following conclusions were derived:
